• There are no out-of-box operating solutions available.
• Average delivery time for MVP using other platforms ~1 year.
• 70% of development work is the same for all projects.
• Basic features require changes on the blockchain level.
• High entry threshold for new developers.

Feature Set	R3 Corda	Hyperledger Fabric	Ethereum	TokenD
Consensus	RAFT	Kafka	pBFT	FBA
Smart Contracts	✔	✔	✔	✔
Private Transactions	✔	✔	✔
External System Integration toolkit				✔
Web/iOS/Android Wallet			✔	✔
Commercial-scale funds management kit				✔
Role-based Access Control		✔		✔
Vanilla Regulatory compliance framework				✔

External System Integration toolkit

• Consistent sequence of all operations occurring in the system with a set of changes applied to the ledger.
• SDKs, intuitive REST API.
• Unique ID tracking for crucial operations.
• Reference implementation of external systems integration.

Web/iOS/Android Wallet

• Fully featured opensource native web, iOS and Android apps.
• Secure on device key storage;
• Designed to ease customization;
• Native SDKs to build your own implementation;

Commercial-scale funds management kit

• Tasks based issuance and withdrawal requests designed for secure integrations with external systems;
• Secure offline app for tokens issuance authorization;
• On-chain crowdfunding module with several price finding algorithms;
• Decentralized exchange;

Role-based Access Control & Multi-signature

• Define on-chain user access rights to follow regulations;
• Tasks based approach to review critical user’s operations in the system;
• Define signers rules to distribute rights among admins of the system to minimize risks of fraud;
• Use multi-signature for decentralized decision making.

Vanilla Regulatory compliance framework

• Manage deposit, transfer, withdrawal limits to follow regulation and/or secure the system;
• Tasks based approach for user roles transition;
• GDPR compilate off-chain personal data storage with guaranty of integrity;
• Direct user-admin communication to resolve issues.

Quick way for running TokenD local development environment with Docker. For production deployment use this guide.

Requirements

• Docker 17.06.0+
• Compose 3.3+
• Linux/MacOS, Windows support is experimental and has known issues.

Bootstraping your environment

# drop any persistent state to make sure you are working with clean install
$ docker-compose down -v && docker-compose pull
# spin everything up
$ docker-compose up -d
# wait while environment initialization is complete
$ docker-compose logs -f initscripts

Now you should be able to access web client at http://localhost:8060 and admin dashboard at http://localhost:8070 default seed for login is SAMJKTZVW5UOHCDK5INYJNORF2HRKYI72M5XSZCBYAHQHR34FFR4Z6G4

These instructions are just a guideline for what you should generally do. You may modify provided docker-compose.yml or configuration files in configs directory to accommodate your needs.

Support

If you need any help with TokenD or would like to suggest a feature, please reach us via https://tokend.atlassian.net/servicedesk/

Node is a key component of the platform. It processes transactions, manages history, and provides an easy to use API to access the blockchain data. It consists of two modules:

• Core — a replicated state machine that maintains a local copy of cryptographic ledger and processes transactions against it in consensus with a set of peers. It implements the federated consensus protocol and is responsible for tokens accounting and roles management. Documentation for the API is available here.

• Horizon is the client-facing REST API server. It acts as an interface between the core and applications that want to access the network. It allows submitting transactions to the network, checking the status of accounts, and viewing transaction history. Documentation is available here.

Identity Service is a GDPR compliant module which stores data collected during the KYC (know your customer) procedure. To access the data, a user or admin needs to provide the digital signature, which is verified against the most recent state of the ledger. Such an approach provides a high level of security. This module also stores client-side-encrypted private keys of users. This prevents a malicious actor from getting access to the accounts of the system even having a full access to the storage. Documentation for this module is available here.

Web, iOS, Android wallets are client facing applications that provide a wide range of functionalities: from storage of encrypted private keys on the device, to token transfers, withdrawals, and trading. They interact with the core of the system directly through the Horizon module and signs all transactions and requests locally. Such an approach ensures that users’ private keys are safe even in case of MITM (man in the middle) attacks.

Auxiliary modules connect blockchain with real world. Different modules are responsible for different processes: external integrations, payment system, exchange, identity verification, etc.

Modules communicate with nodes via API. Such a separation of accounting by the processes performed allows for easy integration with existing — even legacy-systems. Each module can be configured, replaced, and enhanced according to particular business requirements.

[PSIM] (Payment Services Integration Module) is a set of modules that play the role of a bridge between TokenD public blockchains, banks, payment gateways, exchanges. They reflect corresponding operations like deposit, withdrawal and exchange rate changes in another system.

ESIM (External System Integration Module) is a set of modules that interconnects TokenD with various external systems. They are responsible for a wide range of functionalities: from transfer notifications to automatization of the user identity verification.

Accounts are the central data structure in TokenD. Each account has:

• Cryptographic keys (with their weight)
• Permissions representing which operations can be performed

Key pair

All accounts are identified by a public key and, basically, are a piece of data stored on the ledger. All other data on the ledger, such as assets, offers, or KYC data, are associated with accounts.

The weight of a key determines its level of access for initiating a specific operation. Weight is needed to define the threshold for an operation to be performed.

Permissions

To perform operations, for all accounts there is a set of permissions. Permissions are configured by administrators and can be customized for each individual account (this also relates to administrators who should have appropriate permission to configure the permissions of other accounts).

Types of accounts

All accounts in TokenD can be split into two types: admin and user. Admins make decisions on configuring the system and setting business rules as well as verify users and grant them rights (permissions) to perform certain activity on the platform.

Users take advantage of the system functionality by performing operations—which they have permission to perform.

Each operation in the system (e.g., send a payment, manage orders, change account settings, etc.) is represented by a transaction. Moreover, one transaction may contain up to 100 operations. The result of each transaction is the modification of the TokenD ledger state.

Transactions are atomic, meaning that if there are multiple operations in one transaction, either all operations are performed successfully or none is. Thus, if one operation from the list fails, an entire transaction fails as well.

Each operation:

• Is performed by an account directly, via keys;
• Requires permission;
• Has a weight threshold which the signer must have to be able to perform it.

Keys. Each operation is signed by keys. Only the keys owner is able to perform operations associated with their account.

Permission. An account should have appropriate permission to perform a particular operation.

Threshold. Weight threshold is the signer’s access level, meaning that in order to perform a particular operation, a signer or group of signers should have the total weight equal or higher than the operation threshold. This is implemented via the multisignature mechanism.

For a user, the registration in TokenD is not much different from that on any regular website, social media (e.g., Facebook), online shopping services (e.g., Amazon), etc.

User flow

1. Enter an email and password
2. Confirm the registration via their email
3. Receive the recovery seed and save it in a safe place (the recovery seed will be needed to restore the keys in case a user has forgotten or lost their password).

Under the hood

While a user is only asked to perform simple and common actions, the under-the-hood of registration is entirely different. In simple terms, the user password is used to encrypt the user’s wallet before sending it to the server as well as to derive data by which a user will later authenticate to later obtain their encrypted wallet.

Since the function used for derivation is one-way, neither the server nor the man-in-the-middle can use authentication data to restore the user password.

As in the case of registration, the user authorization flow is the same as in any regular system: enter an email and password. However, as has already been mentioned, user passwords never touch the servers neither during the authorization nor ever else.

To make this happen, the under-the-hood of authorization is entirely different from traditional systems.

Authentication

Firstly, a user sends their email address to the server, which, in turn, verifies the presence of such an address in its database. If such exists, the identification process can be considered finished.

After identification, a user should prove their authenticity. For this, he/she enters their password into a device (locally), after which an authentication data is derived and then sent to the server. The server, in turn, verifies the received data, and if it matches, the authentication process can be considered finished (for higher security, an additional confirmation via email can be used).

Receiving an encrypted wallet

After the successful authentication, the server sends an encrypted wallet to a user, who then decrypts it using their encryption key (generated through entering the password, locally in the device) and gains access to their keys. Authorization is finished, and a user is ready to use their keys for signing further operations that they would like to perform in the system.

Note: if an attacker manages to obtain the user’s authentication data (for example, an attacker has bribed an admin of the system who has access to the database), this knowledge wouldn’t present any value because all that an attacker would receive is just an encrypted wallet, which only the user knows how to decrypt.

The user password is the most crucial data which is needed to derive (generate) an encryption key. Losing or forgetting a password leaves the user without access to their keys. In such a case, there is a password change procedure.

User flow

Since the server never knows the user’s password, the password recovery procedure is radically different from traditional systems, yet possible. A user needs to enter the recovery seed (which had been previously shown to him/her during the registration) and a new password. The password will be recovered and new seed created (do not forget to save the new seed!).

Note: recovery seed is your cornerstone; if the password and recovery seed are lost, then the access to an account (as well as to all funds associated with this account) will be lost as well. No one except the user knows this seed, and it is shown ONLY ONCE, during the registration.

Under the hood

After a user has entered the seed into their application, a new wallet for him/her is created. This means that:

• Old keys are deleted (with their weight and permissions)
• New key is generated (i.e., wallet creation)
• Permissions and weight are set for the new key
• Newly created wallet is encrypted using the new user password

The Know Your Customer (KYC) solution needed for a specific case varies greatly on a number of factors such as the business requirements, budget, field of implementation, etc.

For this reason, instead of providing a ready-made, out-of-the-box solution, TokenD offers a toolkit for configuring your own as well as for integrating with third-party verification services.

Build your own KYC solution

As has been mentioned, TokenD doesn’t limit you in the number and type of user access levels as well as what data should be provided and for what access level. The KYC flow is fully customizable. You configure:

• Data a user should provide (e.g., name, home address, health insurance, etc.)
• How it is being checked (this can depend on the data provided: by an admin of the platform; by multiple admins; by an admin + third-party verification service; etc.)
• What is the access level a user will be upgraded to (different access levels vary according to permissions presumed in them; on each operation, there is separate permission—thus the number of access levels can be immense)

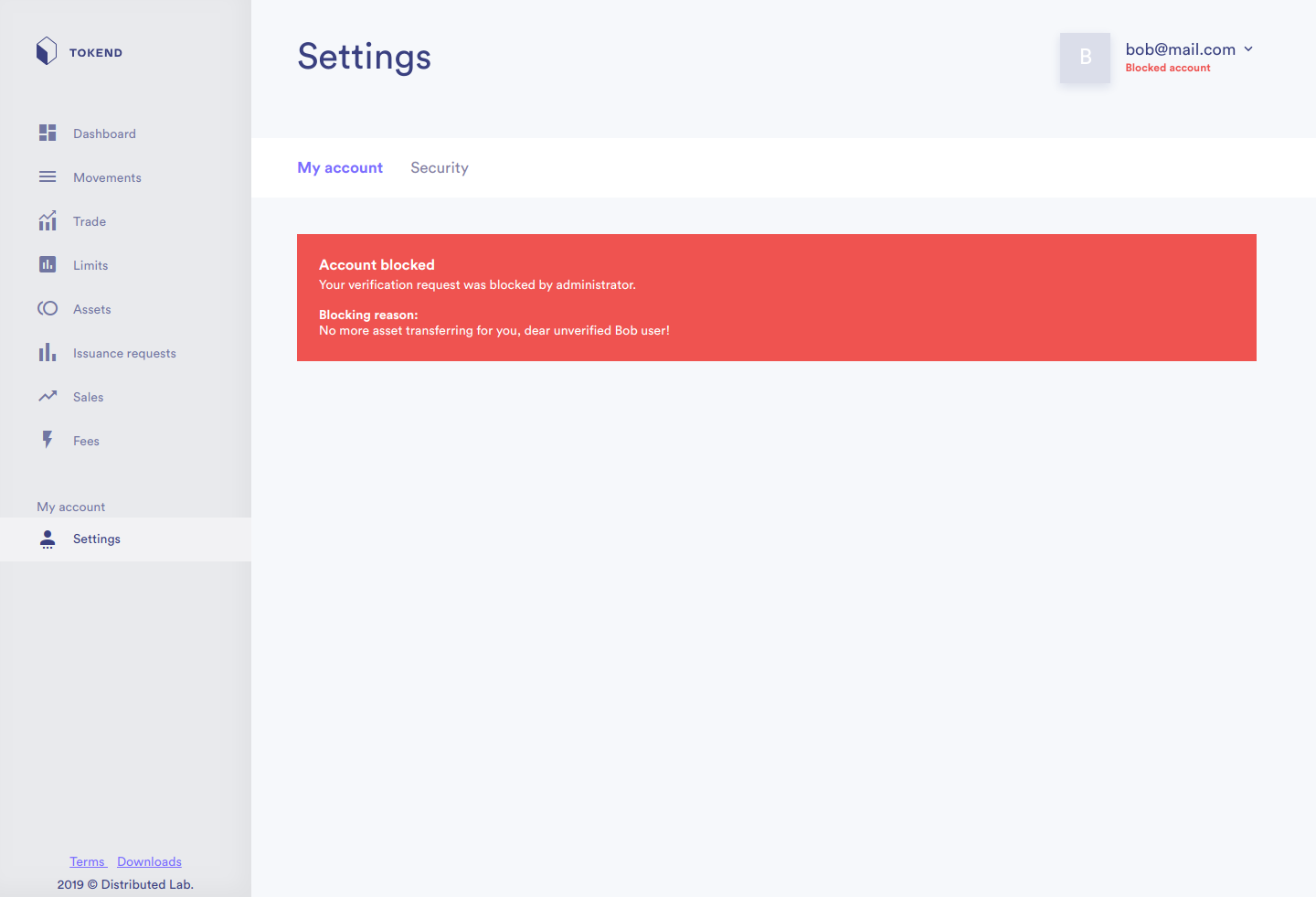

Note: the user access level can also be dropped at any time; to do this, an admin must be granted with a corresponding right.

Integrate with third-party verification services

An outsourcing solution is beneficial when you need to delegate the hardships of verifying the user KYC data.

For example, companies that build online trading platforms in the USA are strictly obliged to limit the investment choices of unaccredited investors. In such a case, the identification of whether an individual is accredited or not can be outsourced to corresponding services (e.g., IdentityMind)

Note: the development of external integration module and user access levels configuration takes approximately two weeks.

Multilevel identification

It is possible to define how specifically a user will be verified depending on the data provided, and thus implement multilevel, several-step identification. This is most beneficial in terms of various regulatory requirements.

For example. All users are verified manually by the platform admins, except for those from the USA, who need to prove they are accredited. In such a case, you can configure that if a user has filled the country box as “USA”, he/she will be automatically redirected (via API) to an outsourcing service that will proceed with identification.

Out-of-the-box solutions

United States accreditation

TokenD team has already implemented some basic KYC flows. It is possible for user to be verified as a General, U.S. verified and U.S. accredited investor. Web application will authomatically define the verification flow depending on user's country and requested role will be visible for application reviewer. Thus, US residents, that are not able to prove their accreditation status won't have the ability to hold and invest to security assets.

Automatic verification

TokenD provides an open-source reference implemenation of automatic verification service, that is integrated with IdentityMind sandbox environment. When connected to the real Identity Mind environment, such service will automatically handle most KYC applications without any need of involving human resources.

The implementation of the service is available on Gitlab

TokenD limits management is not only about enabling/disabling particular actions for particular users. Rather, it allows admins to define limit ranges within which users perform activity on the platform.

Limits can be imposed on:

• Accounts
• Assets
• Time bounds (daily, weekly, monthly limits).

Account

Operation limits can be imposed on a type of account (e.g., unverified; verified; all users under 21 years old; all users without insurance documents; etc.) or a specific account.

Asset

Operation limits can be imposed on a particular asset type (e.g., to avoid speculation, one account cannot buy more than 5 tickets on one concert/show/etc.).

Time bounds

Operation limits can be imposed on specific time bounds (e.g., users from other than gold miner countries will not be able to buy more than 100g per day).

Token lifecycle consists of following steps:

• Creation
• Pre-issuance
• Issuance
• Transfer
• Trade
• Redemption

Creation

At this stage, a token cannot be traded or transferred because it doesn’t actually exist. This is simply an announcement of token details: name, max issuance amount, permissions required to interact with this token.

Pre-issuance

After the pre-issuance stage, actual tokens already exist, but no one yet owns them—they are all locked up on a smart contract. Pre-issuance is either done automatically or manually.

Automatic pre-issuance means that a certain number of tokens, which were specified during the token creation, will be pre-issued immediately after one of the admins approves the token creation request.

Manual pre-issuance means that a user creates a pre-issuance file via an offline application, uploads it on the platform and waits for an admin approval (more detail in offline application).

Offline application is an instrument which allows increasing the level of security during the token pre-issuance as well as provides for the diversification of risks.

In a direct sense, an offline application is a separate software you download to your device to perform operations related to the token pre-issuance. It is available for both users and admins.

Using an offline application, token pre-issuance can be split into two stages both performed by different parties: one uses an offline application to generate the pre-issuance file and sign it with their keys, another uploads this file to the platform so that actual tokens are pre-issued. In this way, the risk of unauthorized token issuance on the platform is diversified due to the correct allocation of duties.

Offline application includes the following functionality:

• Pre-issue tokens
• Change asset issuer
• Generate a new key pair

Pre-issue tokens. This process means that a user/admin creates a pre-issuance file, where they specify the pre-issuance details (which token, how much to pre-issue). This file contains a transaction for pre-issuance, which, before being sent, has to be signed by the creator of the file and also by another party that uploads this file to the platform (these actually could be one person, but to increase the security and diversify the risks, it is recommended to allocate the pre-issuance process into two stages).

Change asset issuer. One example when this might be needed is when one of the parties responsible for pre-issuance had been fired from your organization, and you have to make sure that their key can no longer be used for signing the transaction for pre-issuance.

Generate a new key pair. For higher security, it is assumed that the keys that will be later used for the tokens pre-issuance are generated in an offline application. This is done to have higher confidence that they haven’t been exposed by hackers during the generation.

Offline issuance application, which allows you to securely create new preissuanceAssetSigner and pre authorize tokens to be issued, is available here:

• Windows;
• macOS;
• Source Code.

Issuance

At this stage, tokens are put into circulation. This process can be performed either by direct issuance (manually or through PSIM) or through crowdinvesting.

Direct issuance presumes the manual transfer of tokens to user balances.

Crowdinvesting campaign can be created by any user with corresponding permission and should be approved by an admin (only the token creator is able to put their token up for sale on a campaign; for more details, see crowdinvesting campaigns).

Guide on integration with external fiat system is available here.

Transferring

Unlike traditional order execution model—where users send requests to the main server to transfer funds—TokenD supports direct transfers between users. In particular, all transactions are initiated by the users themselves, through cryptographic keys.

Note: for a token to be transferred, both the sender and receiver need to have corresponding permissions. Otherwise, the system will return error, and the transaction won’t be submitted.

The FBA consensus implemented in TokenD allows achieving full finality of transactions. This means that a transaction is irreversible: once it has taken place on a blockchain (i.e., was accepted by validators), it cannot later be canceled.

Trade

TokenD supports an internal exchange module that allows users to exchange tokens issued on the platform without the need for integrating with external exchange services.

Note: which of assets can be traded on the exchange is defined by the platform admins. For this, an admin should create an asset pair and specify it as tradable.

Redemption

Token redemption is the process of taking the corresponding amount of tokens out of circulation. One example of token redemption is during the withdraw process. Guide for withdrawal process in TokenD system integrated with Bank is available here

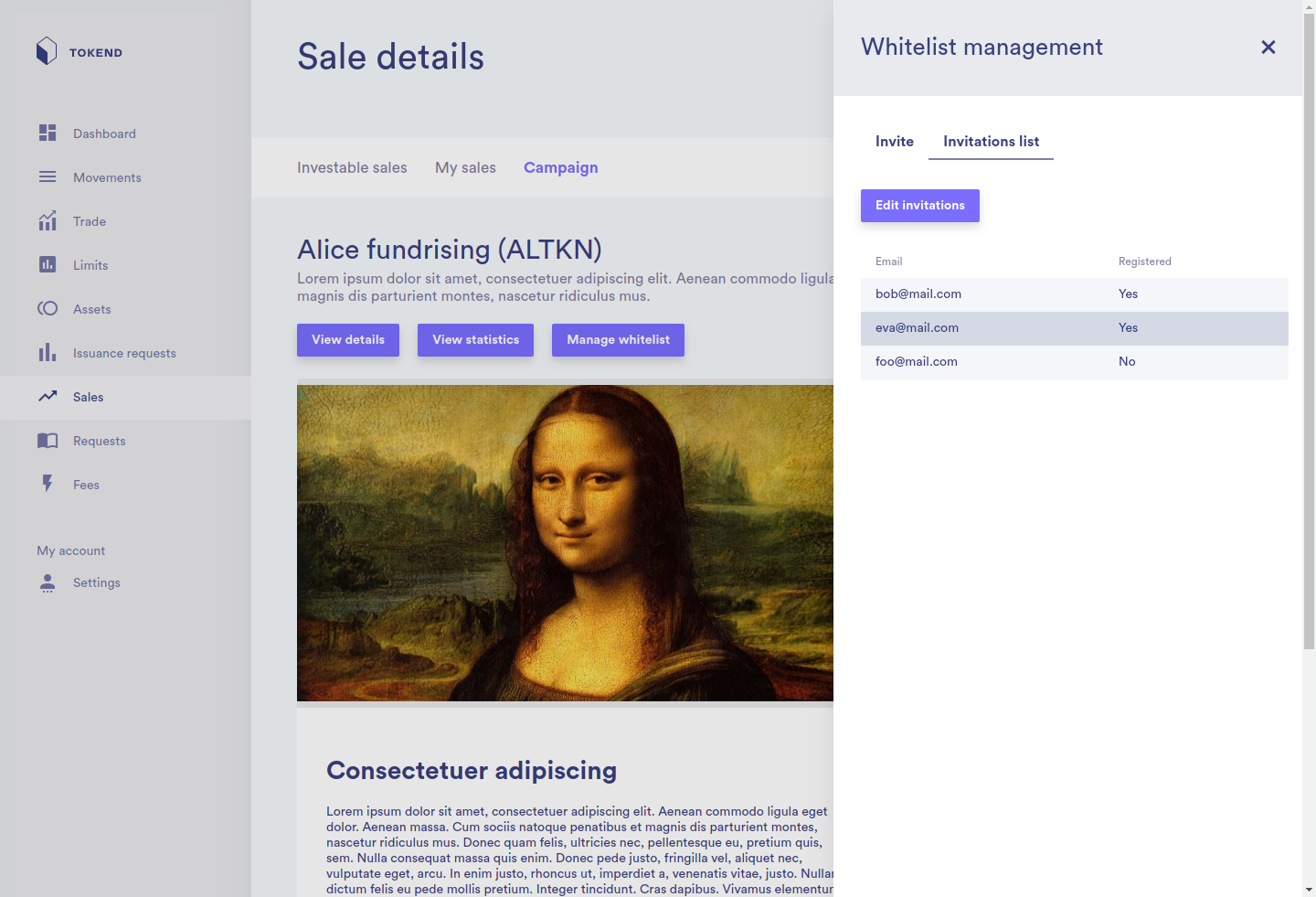

TokenD comes with a crowdinvesting marketplace solution that is implemented through smart contracts, which are performed directly on a blockchain. This allows for the following benefits:

• Investors money are locked up by a smart contract, meaning that the sale creator is technically incapable of stealing investors’ money.
• Investors can re-invest their funds into another sale or simply cancel their investment in real time.
• In case a sale didn’t reach its softcap, the campaign is considered failed, and all funds are automatically returned to all the investors.
• In case a sale is successful (softcap and end time or hardcap reached), the required number of tokens which have been put up for sale are distributed among all investors automatically.

Requirements for users to start their own campaign

To start their own crowdinvesting campaign, a user should:

• have appropriate permission
• create and pre-issue a token that will be put up for sale
• create a crowdinvesting campaign request
• have this request approved by an admin with the corresponding right

TokenD is provided with a flexible and feature-rich set of tools for fees management, which allows creating custom fees imposition rules by choosing and combining the following parameters and modes:

• Account (type of account, any specific account, group of accounts, or all);
• Asset (this is related to any asset on the platform, whether it is issued by an admin or user);
• Operation type (withdrawal, invest, issuance, payment (outgoing, incoming), and order match).

Also, it is possible to choose whether a fee is flat or percentage and define the range in which the imposition of particular fee-charging scenarios takes place. For example, you can specify that USD withdrawals in the range between $0 and $100 are imposed with a flat fee of $0.5, and above $100, a percentage fee of 2% is imposed.

TokenD already has necessary notifications for email verification and 2FA. But you are free to add any new notifications for any system event.

To set custom notifications, you need:

1. Deploy notification sender

Set following section in your_project.env.yaml file.

notificationsender:
  image: tokend/notification-sender-svc:0.1.0
  signer: S...
  defaultchannel: 'email' # 'device' | 'email'
  database:
    local: true # will create postgres container in cluster
    # local: false # will use provided postgres_connection_url
    # url: postgres_connection_url
    migrationscount: 1 # Do not change this, please
  mailgun:
    key: "key-..." # your private mailgun key
    publickey: "pubkey-..." # your public validation mailgun key
    domain: "mg.awesome.com"
    fromname: AwesomeProject
    fromemail: noreply@awesome.com
  s3:
    url: "https://s3.amazonaws.com" # URL to your bucket (mind region)
    bucket: awesome-bucket # Your bucket name
    accesskey: ""
    secretkey: ""
    region: ""
    usestaticcredentials: true # Do not change this, please
  firebase:
    projectid: ''
    serviceaccountid: ''
    # Please, insert here whole content of your firebase access json file
    accessfile: ''
    androidpackagename: ''
  sentry:
    disabled: true # Will not use sentry
    # disabled: false
    # dsn: ...
  templates:
    - name: withdraw-success  # will be used to identify template
      subject: Your withdrawal request has been processed
      # file with exactly this name must be in your s3 bucket
      email: withdraw-success.html  # will be used to send in email body
      push: withdraw-success.json  # will be used to send push notifications

Then generate your_project.k8s.yaml file using tokend-cli:

tokend-cli gen k8s -f your_project.env.yaml -o your_project.k8s.yaml

Upload templates themselves to s3 bucket (their file names must be the same as in config).

Now you are ready to deploy to your aws kubernetes cluster. Run kubectl apply -f your_project.k8s.yaml and you are ready to go!

2. Create your custom notification templates

You can use any HTML code. If you want to set some values dynamically, you need to set placeholders for them in your template:

{{ .Name }}

3. Upload templates to Amazon s3 bucket

You are free to choose the way you prefer to upload your templates, named as in the config, to the root of the bucket, you set in the config.

4. Create a service that will listen for system events

To listen any system change you can use transactions endpoint

After getting needed update, you can use notification service API to send notification.

With Coinpayments you can enable deposit and withdraw of cryptocurrencies for your TokenD system.

Set up your Coinpayments account

1. Create an account and complete KYC verification
2. Create an API key:
   • Go to "Account" menu and select "API keys"
   • Create a key by clicking on "Generate new key" button
   • Once the key is created click "Edit permissions" button and check all actions
3. Go to "Coin Settings" and select coins you want to process in TokenD

Configure Coinpayments integration service

1. In coinpayments configuration section you must fill public_key and private_key attributes with the corresponding values of your Coinpayments API key created before
2. For each service – deposit, deposit-verify and withdraw, – you must specify signer as a secret seed of your TokenD master account and source as it's account ID

In Developer edition files to edit are configs/coinpayments-deposit-verify.yaml, configs/coinpayments-deposit.yaml and configs/coinpayments-withdraw.yaml

Set up assets in TokenD

Every coin must be represented as an asset in your system. Follow this guide to create one:

1. Sign in to admin panel
2. Pick "Assets" section and click "Create asset" button
3. Fill in the form:
   • "Asset code" – must be a cryptocurrency code as it is displayed in Coinpayments, can't be changed later
   • "Maximum assets" – must be 9223372036853 (maximum possible amount)
   • "Initial preissued amount" – must be 9223372036853 (maximum possible amount)
   • "Withdrawable" – must be checked to enable withdraw, can be changed later
   • "Use Coinpayments" in "Advanced" section – must be checked
   • "External system type" in "Advanced" section - must be 0
4. Click "Create asset" button below the form and confirm your action

How to deposit

1. In client app go to "Movements" and select required balance
   • If there is no balance in the required asset you can create it in "Assets" section
2. Click "Deposit" button
3. Enter amount of deposit and click "Request the address"
4. Send crypto to given address. Once funds are received and confirmed the amoun will be available in your balance in TokenD as well as in Coinpayments

How to withdraw

1. In client app go to "Movements" and select required balance
2. Click "Withdraw" button
3. Fill in amount and address and confirm the action

First of all, we need the accountID to identify the account:

  import { base } from '@tokend/js-sdk'

  const keypair = base.Keypair.random()
  const accountId = keypair.accountId()

Then we need to add the signer to our account. For simplicity, we'll use the keypair we've created as a first signer of the account.

  const signerPublicKey = accountId

Hovewer, any keypair can be used, and even more, every account can have multiple signers.

After generating the account ID and the keypair of account's first signer, we can create the operation that can be submitted to the TokenD system:

  const operation = base.CreateAccountBuilder.createAccount({
    roleID: SOME_PREDEFINED_ACCOUNT_ROLE_ID,
    destination: accountId,
    signersData: {
      roleID: SOME_PREDEFINED_SIGNER_ROLE_ID,
      publicKey: signerPublicKey,
      weight: 1000,
      identity: 1,
      details: {}
    }
  })

  // The detailed description of fields is provided via js-doc in the sources.

  await api.postOperations(operation)

Fiat deposit/withdrawals is one of the most important functionalities an asset management system should provide for. In this document, we will review how it works in TokenD.

In this guide, we consider an example of integrating with SafeCharge. However, this knowledge can be further used to integrate with any other similar systems and platforms.

As in any other system, in order to integrate TokenD with external payment systems (e.g., banks, payment gateways, other blockchains, etc.), a "bridge" module needs to be developed. Further in the text, we will appeal to it as PSIM (Payment Services Integration Module).

Requirements

Requirements for the Deposit flow:

1. Issuer of the token that represents an external asset must have account in the external system. This account will be used to store collateral of the issued tokens. Issuer is able to decide what ratio to maintain between collateral and tokens. In this example, we will stick to the 1:1 ratio.
2. Corresponding token in TokenD must be created. A sufficient amount of tokens should be preissued and a valid preissuanceAssetSigner should be controlled by a trusted party (token issuer). In this example, USDT is an asset issued in TokenD, and USD is a collateral for this token.
3. Admin (or signer of account) must be created, that is able to request issuance of the USDT.

Flow

In the deposit flow, the role of PSIM is to monitor the state of an account in the external system as well as to perform the issuance of the corresponding amount of tokens to the corresponding user once a new incoming transfer takes place.

1. User is willing to perform the deposit into the TokenD via web or mobile application. It is possible to mark assets created in TokenD as depositable using the details of an asset (details could be any JSON object, so you can pass any additional data if needed). To start the deposit flow, a user sends a request to PSIM.
   1. PSIM sends a request to the payment system (in our case, SafeCharge). Payment system (further referred to as "PS" or "SafeCharge") generates a unique session ID for the deposit and returns it back to PSIM. PSIM returns it back to the User.
2. Using their application, a user sends a request where they specify card details to SafeCharge and receives their unique identifier.
3. User passes a unique identifier of the card, amount to deposit and additional details to PSIM.
   1. PSIM creates a request for the issuance to the TokenD Core. This request contains the amount to be issued, account on which issuance should be performed as well as all the required tasks that have to be processed to have the issuance performed.
   2. TokenD Core returns a unique identifier of the request.
   3. PSIM passes all the data to PS. PS performs the transfer of funds from the user’s credit card to the account of the issuer in PS.
   4. PSIM approves the issuance request of the corresponding amount of tokens to a user. For big amounts, it is recommended to request manual verification by an admin. To do this, PSIM needs to remove tasks that it is supposed to process and add a new one for an admin (tasks to be processed are defined by the developers depending on their needs). After the confirmation that the transfer is legitimate, an admin removes these tasks and tokens are issued to the user account
   5. User receives confirmation that the deposit is successful.

Withdrawal is the process of exchanging tokens issued in one system to the collateral controlled by another system. To be able to create the Withdrawal Request, a user must have a corresponding permission, and an asset must have AssetPolicy::WITHDRAWABLE enabled. For more details, check Create Withdrawal Request Operation. In order to integrate TokenD with external payment systems (e.g., banks, payment gateways, other blockchains, etc.), a "bridge" module needs to be developed. Further in the text, we will appeal to it as PSIM (Payment Services Integration Module). Integration with payment systems that provides end-to-end IDs is trivial (integration module is able to specify a unique identifier of the transfer; if another transfer is sent with the same identifier, the request will be rejected). In this guide, we propose a solution for payment systems that does not provide such mechanics.

1. User creates a withdrawal request specifying a token, amount, and destination details (e.g., bank account).
   1.1 TokenD Core verifies that a user has corresponding permission, that an asset is withdrawable as well as that a user has a sufficient balance. TokenD Core locks the corresponding amount of tokens and creates a pending withdrawal request with default tasks.
2. PSIM gets all pending requests, where pending tasks are equal to 2 or 4.

   [Pending task = 2]
3. To mark that it has started the processing withdrawal request, PSIM approves the request and removes task 2 and adds 4.
   3.1 PSIM sends a request to the Bank to transfer the corresponding amount of fiat to the bank account specified by a user in details of the withdrawal request

   [Transfer succeeded]
   3.2. PSIM removes task 4.
   3.3 Core removes the request and redeems all the withdrawn tokens. (Flow is finished succesfully)

   [Transfer failed due to invalid destination]
   3.2 PSIM markes the request as permanently rejected and specifies the reason.
   3.3 TokenD Core unlocks the corresponding amount of tokens and removes the request. A user can see the reject reason in the history and is able to create the new one. (flow is finished)

   [Transfer failed due to unknown reason]
   3.2 PSIM removes task 4, adds 1, and adds the reason. Admin is able to see the reason why the transfer was failed and resolve it manually. (Flow finished)

   [Pending task = 4]
4. Request is in an unknown state. PSIM has crashed before or after the transfer has been sent to the bank. In such a case, it requests help from the admin removing task 4 and adding task 1. (Flow finished)

The asset issuance is performed to the specific balance, not the account. So, if we need to issue 5 example assets (EXT) to the account with ID GBGEKARFDSXC6XJHTFPTKLONELARRWIHEVDR2TPBIPUAMFZCV5JLVBAA, we need to know the EXT balance ID from this account:

  const { data: account } = await api.get('/v3/accounts', {
    include: ['balances', 'balances.state'],
  })
  const extBalanceId = account.balances.find(b => b.asset.code === 'EXT')

If such balance doesn't exist, we can create one with the help of ManageBalance operation:

  const operation = base.operation.ManageBalance({
    destination: 'GBGEKARFDSXC6XJHTFPTKLONELARRWIHEVDR2TPBIPUAMFZCV5JLVBAA',
    action: base.xdr.ManageBalanceAction.createUnique()
    asset: 'EXT',
  })

  await api.postOperations(operation)

Now we have the balance exists and can issue EXT asset.

The issuance itself is performed in 2 steps - requesting the issuance and approving the request

To create the issuance request, use the CreateIssuanceBuilder exposed by SDK:

  const operation = base.CreateIssuanceRequestBuilder.createIssuanceRequest({
    asset: 'EXT',
    amount: '100.000000',
    receiver: 'BBKVOTHCUDI4X5MFYNQN7YEAJYY7OPS3HO7J3BBESPQCV23MXW7LLMKR',
    reference: 'Some unique random string',
    creatorDetails: {
      foo: 'bar'
    }
  })

  await api.postOperations(operation)

Before doing so, we can manage the key/value storage to define the tasks should be set, once request is created.

  const key = 'issuance_tasks:EXT' // or 'issuance_tasks:*' to spread the rule for every asset
  const operation = base.ManageKeyValueBuilder.putKeyValue({
    key,
    value: 8,
  })

Setting the value to 8 means that the request will be created with 8 pending tasks. 8 is a bitmask and every approving review can remove any amount of bits. Once there is no pending tasks for the request, it becomes approved. We can also make all the requests become automatically approved by setting the value to 0.

To review the issuance request, use the ReviewRequestBuilder exposed by SDK:

  const requestId = 10
  const { data: request } = await api.getWithSignature(`/v3/requests/${requestId}`)

  const operation = base.ReviewRequestBuilder.reviewRequest({
    requestID: requestId,
    requestHash: request.hash,
    requestType: request.xdrType.value,
    action: xdr.ReviewRequestOpAction.approve().value
    reason: '',
    reviewDetails: {
      tasksToAdd: 0,
      tasksToRemove: 8, // depends on our configuration
    },
  })

  await api.postOperations(operation)

The Know Your Customer (KYC) solution needed for a specific case varies greatly on a number of factors such as the business requirements, budget, field of implementation, etc.

For this reason, instead of providing a ready-made solution, TokenD offers a toolkit. This toolkit allows configuring your own identification solution as well as integrating with third-party services in case you need to delegate the process and only receive data based on which to configure custom user permissions.

TokenD presumes a separate module which is responsible for storing the KYC (know your customer) data, and it is called Identity Storage. Who has permission to operate with Identity Storage is specified via keys given to the system admins—-to prove their permission, an admin provides the corresponding signature.

In order to integrate TokenD with external RegTech compliance solutions (e.g., IdentityMind, IDnow, etc.), a "bridge" module needs to be developed. Further in the text, we will appeal to it as ESIM (External System Integration Module).

Flow

To upgrade their account (i.e., change its type to the one with higher access level), a user has to pass the KYC procedure.

TokenD doesn’t limit you in the number and type of user access levels as well as in what data should be provided and for which access level; it is all customizable.

The flow of how a client upgrades their account to a higher type is as follows:

1. Client sends the required KYC data to Identity Storage.
2. Client sends the request to the platform to change their account type (this request has the KYC data hash value attached which acts as an identifier in Identity Storage).
3. A number of pending tasks appear on the platform; fulfilling them is required to have the user KYC request performed. Which tasks appear depends on how a particular case is customized. For example, depending on the information provided, different tasks may appear. If a user is from Europe, then there could be one one task: need for approval by the platform admin. And if a user is from the USA, then there could be two tasks: approval by the platform admin + additional approval by the external service (in this flow, we consider this particular example).
4. Next, admin reviews the request:
   • If an admin rejects the request (e.g., a user hasn’t provided the required data), then a user will have to start the procedure again starting from the first step.
   • If an admin approves the request, then one of the tasks required to perform the user request is marked is complete.
5. ESIM monitors the platform for requests which contain an admin’s approval and a pending task for external service approval.
6. If such a request exists, ESIM requests Identity Storage for the KYC data provided by the corresponding user.
7. After receiving this data, ESIM sends a request to the exterior KYC service.
8. Service processes the request.
   • Service confirms the request
     1. Service sends a message to ESIM that the request has been accepted
     2. ESIM confirms the request on upgrading the user’s account type (i.e., marks the second pending task as complete)
     3. User account type is changed
   • Service rejects the request
     1. Service sends a message to ESIM that the request has been rejected
     2. ESIM sends a message to the platform that the request has been canceled.
     3. User account type is not changed, but a user can start the identification processes from step 1.

KYC recovery allows recovering access to the user account even if they lost all keys. KYC recovery consists of two main steps.

Initiate KYC recovery

The client fills out the registration form. The system sends an email with a verification code. After successful email verification, the system saves encrypted keys and sends InitiateKycRecoveryOperation. Initiate KYC recovery operation drops all existing user keys and adds a new key with a specific signer role. This role doesn't allow the user to access any data or send any ordinary transactions until the user proceeds with the second step.

Finish KYC recovery

A user sends a create KYC recovery request operation and provides his KYC data. Admin reviews this request and accepts it. After accepting the request, user signer role changes to default so they will be able to perform all actions allowed to their role.

Sending each operation can make one or more changes in current system state. Them are called LedgerEntryChanges.

LedgerEntryChange contains information about:

• changed LedgerEntry type

• change type

• payload that describes change

Possible change types:

• created

• updated

• removed

• state - LedgerEntry was used in operation, but no changes was added

You are able to get transactions and related ledger changes using transactions list endpoint

This is an experimental API. Experimental APIs may be changed or removed without notice.

Before creating the poll entry, you may want to configure the system to define what type of voters can participate in the poll. For doing so, you can map the permissionType of the poll with one or many account rules.

To create poll request, use the ManageCreatePollRequestBuilder exposed by SDK:

Create poll request:

  const SAMPLE_PERMISSION_TYPE = 4

  const operation = base.ManageCreatePollRequestBuilder.createPollRequest({
    permissionType: SAMPLE_PERMISSION_TYPE,
    numberOfChoises: 2,
    pollType: base.xdr.PollType.singleChoice().value,
    creatorDetails: {
      foo: 'bar'
    },
    endTime: 1553427080,
    startTime: 1553254282,
    voteConfirmationRequired: false,
    resultProviderID: 'GDWYBLSZIXTTBGWRWBAYVFE6ZDL5GBS3ILOCLVXFB3NX4FFJJDGQUKLB',
    allTasks: 1,
  })

  await api.postOperations(operation)

Detailed description of params is provided via js-doc in sources or in format of [XDR definitions][create-poll-request]

Until approved or permanently rejected, request can be cancelled by it's creator. To cancel the request, use the same ManageCreatePollRequestBuilder:

  const operation = base.ManageCreatePollRequestBuilder.cancelPollRequest({
    requestID: '10',
  })

  await api.postOperations(operation)

Detailed description of params is provided via js-doc in sources or in format of [XDR definitions][cancel-poll-request]

After request is created, it can be reviewed by admin using ReviewRequestBuilder. For example, to approve request, submit the following operation:

  const requestId = 10
  const { data: request } = await api.getWithSignature(`/v3/requests/${requestId}`)

  const operation = base.ReviewRequestBuilder.reviewRequest({
    requestID: requestId,
    requestHash: request.hash,
    requestType: request.xdrType.value,
    action: xdr.ReviewRequestOpAction.approve().value
    reason: '',
    reviewDetails: {
      tasksToAdd: 0,
      tasksToRemove: 1, // depends on configuration, to fully approve request remove all pending tasks
    },
  })

  await api.postOperations(operation)

Detailed description of params is provided via js-doc in sources or in format of [XDR definitions][review-request]

After following this steps, the poll should be created and ready to accept votes after startTime.

After endTime has passed any votes will be rejected, and poll needs to be closed explicitly by providing voting result.

To resolve poll as passed, submit the following operation:

  const pollId = 5
  const operation = base.ManagePollBuilder.closePoll({
    pollID: pollId,
    result: base.xdr.PollResult.passed().value,
  })

  await api.postOperations(operation)

If poll has failed, submit the following operation:

  const pollId = 5
  const operation = base.ManagePollBuilder.closePoll({
    pollID: pollId,
    result: base.xdr.PollResult.failed().value,
  })

  await api.postOperations(operation)

Detailed description of params is provided via js-doc in sources or in format of [XDR definitions][manage-poll]

To submit the transaction to the TokenD network, we should create an ApiCaller instance and provide it a Wallet instance that we want to be used for signing transactions.:

  import { Wallet, ApiCaller } from '@tokend/js-sdk'

  const wallet = new Wallet(
    "", // email param, usually be ommited here
    "SBW7DY3ZEYGGWQJG7JOPYXDIQFZYAC4DKIO75VINZXPIWWIQIJDCDCMZ", // the secret seed of the signer
    "GD2XNPQCN6A6IRWJDADOVAL4YMDPYB6VTQRIXW7MVQAHCNBMO46KBCIC", // the ID of the account
  )
  const api = ApiCaller.getInstance('http://tokend-backend.com')
  api.useWallet(wallet)
  api.usePassphrase("Our network passphrase")

Now api will automatically sign any transaction and set it's source from the Wallet we've provided.

  await api.postOperations(op1, op2, op3)

After that we can create createSigner operation:

  const operation = base.ManageSignerBuilder.createSigner({
      weight: 1000,
      identity: 1,
      publicKey: 'GDWYBLSZIXTTBGWRWBAYVFE6ZDL5GBS3ILOCLVXFB3NX4FFJJDGQUKLB', // the ID of the account
      roleID: 1,
      details: {
        'foo': 'bar'
      },
    })

  await api.postOperations(operation)

Detailed description of params is provided via js-doc in sources or in format of [XDR definitions][manage-signer]

You can check whether signer was created or not by getting list of account signers

  const accountId = 'GD2XNPQCN6A6IRWJDADOVAL4YMDPYB6VTQRIXW7MVQAHCNBMO46KBCIC'
  const { data: signers } = await api.getWithSignature(`/v3/accounts/${accountId}/signers`)

Detailed description of params is provided via js-doc in sources or in format of [horizon definitions][signers]

By using checkSignature(), you can validate signature

  const express = require('express')
  const { ApiCaller } = require("@tokend/js-sdk")

  const app = express()
  const port = 3000

  const tokenD = ApiCaller.getInstance("http://localhost:8000/_/api/")
  const accountId = 'GD2XNPQCN6A6IRWJDADOVAL4YMDPYB6VTQRIXW7MVQAHCNBMO46KBCIC'

  const checkSignature = (owner) => (req, res, next) => {
      let payload = {
          data: {
              attributes: {
                  headers: {},
              },
              relationships: {
                  signer_of: [
                      {id: owner},
                  ]
              }
          },
      }

      Object.keys(req.headers).map(function(key) {
          payload.data.attributes.headers[key] = req.header(key)
      })

      payload.data.attributes.headers["(request-target)"] = `${req.method} ${req.path}`.toLowerCase()

      tokenD.post("/integrations/doorman/validate", payload)
          .then(_ => next())
          .catch(e => {
              const response = e.originalError.response

              if (response.status >= 500) { // TokenD having a bad day
                  res.sendStatus(500)
              }

              if (response.status === 422) { // our request was invalid in some way
                  res.sendStatus(500)
              }

              // signature didn't pass validation
              res.sendStatus(e.originalError.response.status)
          })
  }

  app.get('/MyAwesomePath', (req, res) => {
    checkSignature('GB74P7P5QNJFFDZSH4PRVSAJZYPMJQU4D4D355I3OG4WGDWSIN6YGK32')
    res.sendStatus(200)
  })

  app.listen(port, () => console.log(`listening on port ${port}`))

This is an experimental API. Experimental APIs may be changed or removed without notice. If the poll is approved and started, accounts can start casting votes for the choices the poll suggests. To manage votes, SDK exposes ManageVoteBuilder for building operations.

To cast a vote in single-choice poll for the 10th option:

  const operation = base.ManageVoteBuilder.createSingleChoiceVote({
    pollID: '5',
    choice: 10,
  })

  await api.postOperations(operation)

To cast a vote in multiple-choice poll:

  const operation = base.ManageVoteBuilder.createMultipleVotes({
    pollID: '6',
    choices: [10,11,12],
  })

  await api.postOperations(operation)

Detailed description of params is provided via js-doc in sources or in format of XDR definitions

Votes can also be recalled. Same operation is used for both single and multi-choise polls:

  const operation = base.ManageVoteBuilder.removeVote({
    pollID: '5',
  })

  await api.postOperations(operation)

Detailed description of params is provided via js-doc in sources or in format of XDR definitions

Reviewable requests are operations that can be reviewed before changing ledger state. This requests can be reviewed by admin or any system module.

Reviewing process is managed by tasks. While reviewing or creating requests you can set or remove tasks using fields TasksToAdd and TasksToRemove. After processing review admin or module should remove this task If there are no pending tasks the request will be accepted.

Tasks are uint32 values that can be customized differently for specific system. Task must be 2^n. TokenD already has some tasks defined for its integrations.

KYC tasks

• default = 1 - request needs review by admin.
• submit_auto_verification = 1024 - request needs review by IDMind module.
• complete_auto_verification = 2048 - request waits for IDMind verification completion.
• manual_review_required = 4096 - IDMind failed to check KYC and it needs review by admin.

TokenD 4.6 release is focused on adding the ability to use arbitrary data entries (called Data) and the addition of liquidity pools for decentralized exchanges based on Automated Market Makers (AMMs).

Decentralized Exchange (DEX) using Uniswap v2 Logic

TokenD 4.6 have implemented a DEX based on the Uniswap v2 protocol to facilitate seamless trading and liquidity provision. It is possible to:

• Add liquidity to a pool
• Remove liquidity from a pool
• Execute swaps through a pool

These new features aim to provide a more versatile and user-friendly trading experience.

Data Entries

Data is a versatile ledger entry introduced in this release, which allows users to store, delete, update, and transfer arbitrary data between owners. With the Data feature, users can now implement a wide spectrum of use cases, such as:

• On-chain Non-Fungible Tokens (NFTs)
• Arbitrary data registration on the blockchain
• Blockchain-based messaging services
• And more

This new functionality empowers users to create innovative solutions and enhances the overall utility of the TokenD platform.

Additional improvements:

TokenD 4.6 also includes several general improvements and bug fixes to ensure a smoother and more reliable user experience

Detailed changelogs

• CHANGELOG.md of the core
• CHANGELOG.md of the js-sdk
• CHANGELOG.md of the xdr
• CHANGELOG.md of the web-client
• CHANGELOG.md of the admin-panel
• CHANGELOG.md of the horizon
• CHANGELOG.md of the identity

Version upgrades

• core - 3.8.0
• js-sdk - 1.15.0
• xdr - 3.8.0
• web-client - 1.13.0
• admin-panel - 1.15.0
• horizon - 3.11.0
• identity - 4.7.7

Traefik

Traefik is a new API gateway that is presented in the current release. It is more stable than Janus and replaces it. You may continue to use Janus as new Services are fully backward compatible with it. In case of migrating to Traefik use this guide.

Horizon endpoints

A few new endpoints was added to horizon:

• Endpoint to get list of accounts
• Endpoint to get operation by id
• etc.

For details check horizon documentation

Other

• General improvemets and bug fixes

Version upgrades

• js-sdk - 1.13.0
• core - 3.6.5
• horizon - 4.9.0
• identity - 4.6.0

Summary

TokenD 4.4 release is focused on adding redemption functionality.

Redemption

There are several circumstances in which an Investor is forced to transfer their assets to the another person after a specific event is triggered.

Some of these 'trigger events' can include:

• Death of the shareholder
• Last will and testament execution
• Cessation of employment
• Mental or physical incapacity of the shareholder
• Divorce
• etc.

For this redemption reviewable request was added. The asset owner can create a request for transferring funds of some holder to another person and add some documents or other details to this request. Admin will be able to review this request and approve it reject. Until review funds are locked, after review depends on result funds will be transferred or returned to holder.

Version upgrades

• js-sdk - 1.12.0
• core - 3.6.3
• horizon - 3.7.1

Summary

TokenD 4.3 release is focused on adding the ability to integrate with ERC20 and Stellar tokens while creating a non-system asset

Bridges for ERC20 and Stellar assets for non-system assets

When creating a new non-system asset, the user can now set up a bridge to Ethereum (ERC20) or Stellar network for this asset.

Once bridges for Stellar and ERC20 assets are configured, platform users will be able to deposit and withdraw these assets.

Settings

Identity module is now able to store custom settings

Cleaning unverified wallets

Identity module will now store unverified wallets only for some period of time that can be set in configs:

wallets:
  cleaner_period: 24h

This will help to protect from blocking an email address from registration on the platform by starting registration process for it.

General improvements

• web-client have been upgraded to version 1.10.3 admin-panel have been upgraded to version 1.10.1

Detailed changelogs

• CHANGELOG.md of the web-client
• CHANGELOG.md of the admin-panel
• CHANGELOG.md of the offline-issuance

Summary

TokenD 4.2 release is focused on adding new types of token sale campaings.

New sale type

Up until version 4.2 TokenD employed a token sale mechanics where investors' funds were locked the assets were issued to participants' accounts upon the sale completion.

In the new type of sale assets are issued to the participants' accounts immediately upon investment in a sale.

General improvements

• web-client have been upgraded to version 1.10.2 admin-panel have been upgraded to version 1.10.1

Detailed changelogs

• CHANGELOG.md of the web-client
• CHANGELOG.md of the admin-panel
• CHANGELOG.md of the offline-issuance

Summary

TokenD 4.1 release is focused on improving the framework core. We have significantly re-worked our XDR library, did some source refactoring and performance improvements.

UI improvements

• Direct Sales have been been added to the web-client

Detailed changelogs

• CHANGELOG.md of the web-client
• CHANGELOG.md of the admin-panel

Summary

TokenD 4.0 release is focused on extending our framework with bridges to the Stellar as well as Ethereum network in the case of ERC20 tokens. We have also added the KYC Recovery flow to the reference implementations of web-client and admin-panel as well as introduced the Direct sales feature.

Bridges for ERC20 and Stellar assets

When creating a new system asset, the platform administrator can now set up a bridge to Ethereum (ERC20) or Stellar network for this asset.

Once bridges for Stellar and ERC20 assets are configured by the platform administrator, platform users will be able to deposit and withdraw these assets.

It is also possible to use TokenD 4.0 for the initial asset issuance and then withdraw those assets to either of the two networks.

KYC Recovery

We introduced the KYC Recovery feature on the back-end in TokenD 3.5.0. In TokenD 4.0, we have removed the account recovery with a seed feature because it was hard to understand for end-users. Instead, we are now using the KYC recovery flow in our reference implementations of web-client and admin-panel.

If platform users had passed the KYC procedure and then lost access to their account, they can make an account recovery request by re-submitting the KYC data and have their account unlocked upon review by the platform administrator.

Platform administrator compares the user's newly submitted KYC data with the existing and based on this, makes a decision to the restore the user account.

Direct sales

Direct sales feature allows selling the assets issued on the platform for assets without depositing it to the platform.

Such assets need to be marked accordingly by the platform administrator on the System assets management screen.

Once this is done, corporate users can now create assets eligible for direct sales.

We have added the purchase flow for direct sales to our reference implementation of mobile clients: android-client and ios-client.

In future we may add the purchase flow to the web-client as well.

General improvements

• web-client and admin-panel have been upgraded to version 1.10.0
• multi-language support have been added to web-client and admin-panel applications.

Detailed changelogs

• CHANGELOG.md of the web-client
• CHANGELOG.md of the admin-panel
• CHANGELOG.md of the offline-issuance

General

TokenD 3.6.0 release is focused on adding blockchain-backed voting functionality to the platform. A reference implementation of voting functionality has been added to web-client and admin-panel.

The reference implementation allows corporate users to create polls, while platform users who hold a specific asset can participate. The feature models a decision-making process between asset holders and asset issuer.

Web-client 1.9.0

Polls creation, browse and participation

Similar to sales, polls are created by submitting a request to the platform administrator. Once the poll is approved, it becomes available in the Polls section.

Register of shares and My assets

Corporate users can now see the movements of their assets between asset holders in Register of shares section. It is now also possible to filter assets by their ownership via My assets in Assets section.

Admin-panel 1.9.0

Polls review and browse

By default, polls are based on the general reviewable requests functionality so platform administrators have to approve a poll before it becomes available to the platform users. Functionality for browsing and approving poll requests have been added to the admin panel.

Offline issuance 1.3.2

Package dependencies have been updated to eliminate some security issues caused by outdated packages.

Detailed changelogs

• CHANGELOG.md of the web-client
• CHANGELOG.md of the admin-panel
• CHANGELOG.md of the offline-issuance

General

KYC Recovery

The 3.5.0 release introduces a toolset for building the KYC Recovery flow to the TokenD core. Now if platform users forget their password and do not have the recovery seed, they can still regain access to their accounts via the KYC Recovery flow. With this flow implemented, users can send a request to the platform admin, submit their KYC documents to prove the account ownership and have their account unlocked by the platform admin.

The following documentation allows building your own KYC Recovery flow for your front-end application:

• Initialize the KYC recovery for Identity Storage. Requires 2FA via email.
• Create a reviewable request for the KYC Recovery

A reference implementation for TokenD default web-client and admin-panel is going to be added in the upcoming releases.

Status message design improvements

System-wide status massages design have been improved for more consistency.

Web-client 1.8.0

New sale form improvements

We added a new "Cap asset" field to allow a user to choose the asset in which he/she can see the investments collected as a result of their crowdinvesting campaign. Under the hood, the balance for the asset which a user marked as "Accept investments in" is created , then the balance is converted according to the exchange rate with the "Cap asset", and the "Cap asset" balance is eventually shown.

Fees display improvements

Fees area in the "Send assets" form has been reworked for better readability. Fees calculation details are still available by the Show my account fees link.

Faster and smoother UX

Modern skeleton loading templates have been added to the web-client to improve application performance and overall user experience.

Admin-panel 1.8.0

Collected fees management

Collected fees management screen has been added to the Fees section of the admin-panel. Now platform admins can make withdrawal requests for fees collected from platform users.

Sale whitelist details

Whitelist tab has been added to the Sale details screen, meaning that now platform admins can see users that are whitelisted for the sale participation. Also, Whitelisted property in the Sale details section indicates whether thea sale requires whitelisting or not.

Detailed changelogs

• CHANGELOG.md of the web-client
• CHANGELOG.md of the admin-panel
• CHANGELOG.md of the js-sdk

Web-client 1.7.0

UI improvements

• Whitelisting functionality has been added to Sales. It allows limiting sale participation only to the invited users. It is possible to invite users who are not yet registered on the platform. In this case, they will asked to pass the registration process having finished which, they will be able to participate in a sale.

Notes:

1. The sales created before 3.4.0 cannot use whitelisting.
2. For this feature, email notifications are expected in the upcoming versions.

• Sale details screen has been supplemented with Investment statistics

• User account menu has been extended to display up to three balances in base assets.

• Pre-issuance Guide Page has been added to the Upload-pre-issuance form.

Admin-panel 1.7.0

UI improvements

• KYC verification queue: feature allowing administrators to review a large number of KYC requests easier and faster.

• Pre-issuance Guide Page links has been added to Offline operations → Pre-issuance and Offline operations → Change asset issuer screens.

• Limits management form improvements:

• • Remove buttons allow removing specific limits type by type.
• • Unlimited label has been added.
• • Not set now means that the limit value of higher scope will be used.
• • Scope selector has been updated.

Other improvements

• Sentry error tracking integration has been added to both web-client and admin-panel

Detailed changelogs

By following the links below, you may find the other changes:

• CHANGELOG.md of the web-client
• CHANGELOG.md of an admin-panel
• CHANGELOG.md of the js-sdk
• offline-issuance has no updates in the current release

Improved KYC verification

The general verification form has obtained a set of new fields such as Country, Date of Birth, Address Details as well as the ability to upload different Identity Documents.

Because of special regulations for U.S. citizens that affect their ability to invest in security assets, we have added a new flow for U.S. accredited investors and improved our flow for the verification of general users. Now every user who has selected "USA" as their country of residence will be prompted to upload the proof that he/she is an accredited investor. If he/she uploads the proof, the role of their request will be automatically defined as "US Accredited". Otherwise, the role of the request will be "US Verified" and once it is approved, a user will not be able to hold assets of the type "security".

IdentityMind integration module

In addition to the internal KYC module, TokenD can be configured to work with third-party verification services. To provide an example of how this could be done, we have developed an IdentityMind integration module. We share this source code as a reference implementation, which you can further re-use by adding your IdentityMind credentials and configuring it to your KYC workflow. See this repository for details.

Web-client 1.6.0

• Now it is easier for a user to understand that an account have been blocked.

• Charts have been improved. Now, they better re-render animation and have floating hints.

• All email addresses can be easily copied via the copy button.

Admin-panel 1.6.0

• KYC verification now displays pending tasks such as auto-verification, submitting requests to third-party integrated APIs, etc. Platform administrators could better manage jobs done by TokenD auxiliary modules.

• Email and Account ID filters have been merged onto one file Requestor, which can now be used to filter for both values.
• Email autocompletion have been added to fields which accept email addresses.

• Operation details screen have been updated to improve readability.

Detailed changelogs

• CHANGELOG.md of the web-client
• CHANGELOG.md of the admin-panel
• CHANGELOG.md of the js-sdk

Sales and Assets naming consistency

We have introducted the naming consistency: now all funds are called sales, and all tokens are called assets. On the admin-panel, we combined all the pages related assets into a single Assets menu item.

User blocking

We introduced Block to allow admins to block particular users. Under the hood, this is a general Change role request operation, and it is being automatically approved. The action forces a user to acquire a blocked account role. The role has no actions allowed except for some basic ones such as log in, log out, etc.

Note: This is our default configuration of the blocked role. It can be configured in a different way but make sure you really understand what you do.

Admins can block a user by pressing the Block button on the User details screen (Users or KYC requests page >> Users list’s). Blocked users can be unblocked by pressing the Unblock button (depending on whether a user is blocked or unblocked, this button changes correspondingly). After unblocking, admin-panel restores the previous approved KYC request, so that all the previously approved KYC data is restored.

Web-client will show an appropriate account role under the user email in the top-right corner of the page. The blocked user can see the block reason on the Verification page, but there will be no KYC data displayed. By default, web-client does not hide any functionality for blocked users, but they will get an error if they try any restricted action.

Web-client

Idle auto-logout

We introduced Idle auto-logout to our web-client and admin-panel. Idle auto-logout default behavior

• web-client - after 15 minutes since the last user action, auto-logout occurs and the message is being displayed;
• admin-panel- after 15 minutes since the last admin action, a warning message is being displayed, and in case of further inactivity, auto-logout occurs.

Note: Under the hood, the log out is being performed on the client’s side entirely. There is no server-side functionality supported for this yet, but we are actively researching to find the best approach to this feature. TokenD does not know users' or admins' keys because they are stored encrypted with the passwords of users or admins, and these keys cannot be decrypted by anyone else (in this instance, there is no "master-key" that rules over all other system keys).

Limit request details

Limit request details have been added to the Limits screen. Limit request details display request details, actual request state and the reject reason in case there is one.

The request list have been moved above the actual limits for easier accessibility.

Redesigns and error wordings

We redesigned the status message: it has brighter colors, some animations and more verbose server-side error outputs.

For the following elements, the redesign work has been done:

• Clipboard field designs (Settings >> Security >> Account ID);
• Recovery seed screen upon sign up;
• Verification status message designs and wording on the Verification screen;

Admin-panel

Menu structure update

offline-issuance-related operations have been moved to a new menu item, Offline operations.

Detailed changelogs

• CHANGELOG.md of the web-client
• CHANGELOG.md of the admin-panel
• CHANGELOG.md of the js-sdk

Experimental (do not use in production)

• Voting functionality has been added to the TokenD core. It is still experimental and incomplete, and it is planned to become fully functional in one of the upcoming releases.

New Feature

• [TDV-109] - [Auxiliary Modules] Сoinpayments integration module.

• [TDV-171] - [Client] [Admin] Coinpayments UI integration.

  In Admin, when an asset is created, check the Coinpayments checkbox. After this, in Client, Deposit and Withdraw sections will have Coinpayments option available for according assets. By default, TokenD is configured to use a DL Coinpayments account.

  If you are using Coinpayments for anything other then LTCT (Litecoin testnet), please re-configure it to your Coinpayments account. To setup your Coinpayments account in TokenD, see the corresponding section in this doc.

• [TDV-3] - [Auxiliary Modules] Service for the request signature verification.

• [TDV-5] - [Core] Ledger changes filter for transactions.

• [TDV-356] - [Android] Asset pairs list screen.

• [TDV-362] - [Android] Trade history.

Improvement

• [TDV-113] - [Core] Filter issuance requests by a receiver.
• [TDV-141] - [Client] [Admin] Add a noscript html tag.
• [TDV-152] - [Client] Change the order book order.
• [TDV-153] - [Client] Add tickers to update charts.
• [TDV-154] - [Client] Outdated account details.
• [TDV-155] - [Admin] Remove 'Invest' fee type from admin panel.
• [TDV-252] - [Client] Do not hard code quote asset in the sale creation form.
• [TDV-293] - [Admin] Add field autocomplete.
• [TDV-296] - [Core] Sentry integration for the core.
• [TDV-310] - [Client] Make tests fail when unhandled exception was thrown.
• [TDV-147] - [Client] [Admin] "Reset user to unverified" button.
• [TDV-160] - [Client] Rename fee subtype to something more user friendly.
• [TDV-161] - [Admin] Improve limits design.
• [TDV-164] - [Admin] Update KYC request after reviewing.
• [TDV-166] - [Client] display negative amounts on balance effect viewers.
• [TDV-315] - [Client] Make one request able to fetch all account roles instead of fetching it one-by-one (key-value.module.js).
• [TDV-355] - [Client] Movements-history module unit tests.
• [TDV-389] - [Android] Offers tab to trade screen.
• [TDV-392] - [Android] Do not show a scary big number on the fees screen.
• [TDV-327] - [Android] api.demo.tokend.io as a default env.
• [TDV-329] - [Android] Operation labels in the history.
• [TDV-354] - [Android] Update order book design.
• [TDV-371] - [Android] Reorganize trade screen.
• [TDV-338] - [iOS] Update default env to demo.tokend.io.
• [TDV-340] - [iOS] op_manage_asset_pair in the history.
• [TDV-341] - [iOS] Labels for operations in the history.
• [TDV-342] - [iOS] Update history icons.
• [TDV-372] - [iOS] Update purple color.
• [TDV-84] - [DevOps] Versioning for the environment configuration.

Bug

• [TDV-85] - [DevOps] Can't get a document with the Developer Edition.
• [TDV-263] - [Client] [Admin] Long strings break tabs.
• [TDV-276] - [Client] History of operations is not visible.
• [TDV-278] - [Client] [Admin] Token cannot be issued.
• [TDV-279] - [Client] Can’t send tokens by email.
• [TDV-303] - [Admin] Error when admin has approved a user.
• [TDV-328] - [Admin] Account roles are not loaded after refreshing the limits page.
• [TDV-331] - [Android] Handle "manage asset pair" in the history.
• [TDV-376] - [Client] Cannot cancel an order.
• [TDV-385] - [Client] Fix console errors in movements unit tests.
• [TDV-388] - [Android] Sign in with same credentials after the network switch is not working.
• [TDV-391] - [Client] Wrong account role to set while creating the change role request.
• [TDV-398] - [Client] Fix displaying account role in a passport.
• [TDV-149] - [Admin] Restore email filtering on the KYC requests page.
• [TDV-290] - [Admin] Error when trying to approve a user.
• [TDV-219] - [Client] Resolve simplemade security issue.
